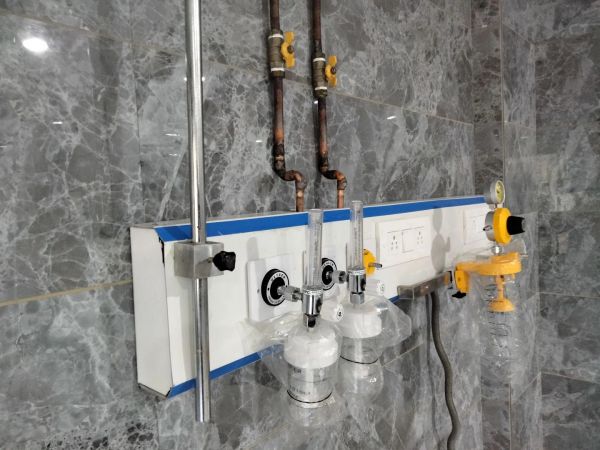

MGPS oxygen pipeline in hospital
Warning Digital Alarm

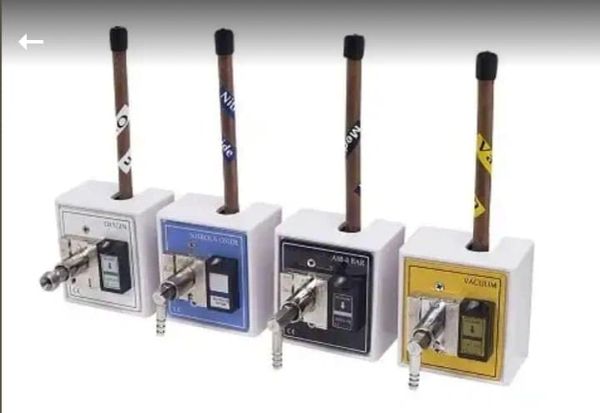

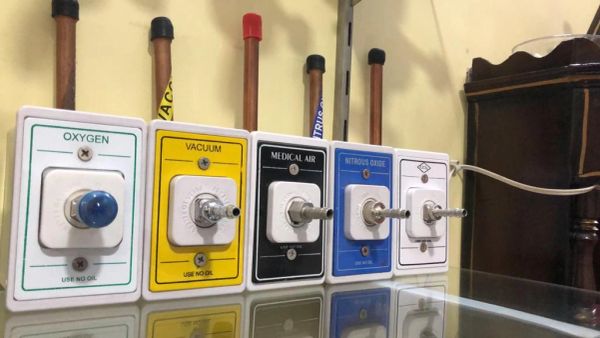

Terminals units - Outlets of hospital
o Oxygen outlets
o Nitrous oxide outlets
o Compressed air 4bar
o Compressed air 7bar
o Vacuum outlet

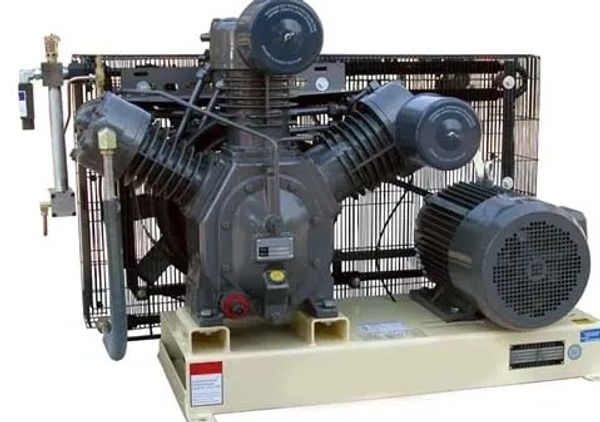

System design of medical air plant - Must consists of two or more compressors. - Automatic back-flow prevention. - Isolation valves - Pressure regulators - Filters o Dust filter: for removing dust and harmful particles from the compressed medical air o Activated carbon filter: for removing hydrocarbons, oils and water vapour from compressed medical air. o Bacterial filter: remove the bacteria from the compressed medical air.
